Opis
Układ SBEC Stepdown Matek Power Module to stabilizator zasilania do podłączania kamer i modułów transmisji które wymagają stabilnego zasilania 5,2V / 6V / 8V / 12V o poborze A według specyfikacji.
Cechy produktu i dane techniczne
SPEC
- Wide 9V to 55V Operating Input Range with TVS protection
- 3x independent Step-Down Voltage Regulators
- BEC Vx, 5.2V / 6V / 8V output options. supports typical continuous output current of up to 15A, Peak current of up to 25A.
- BEC 5V (Fixed), 4A continuous
- BEC 12V (Fixed), 4A continuous
- 1K:20K voltage divider built-in (Volt = 1/21 Input voltage)
- Current sensor signal passthrough pad

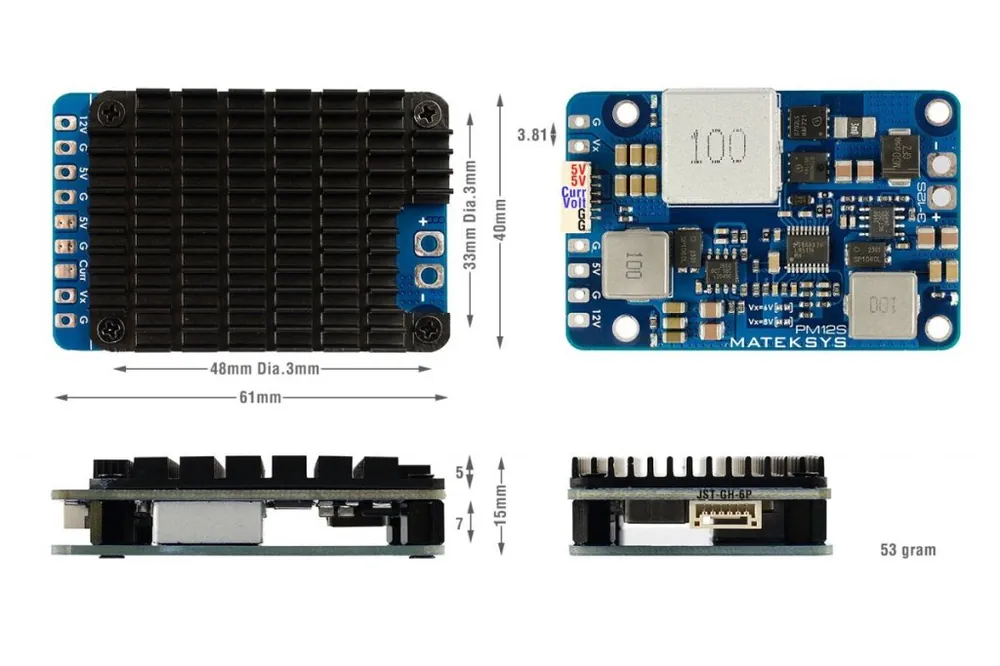

- Size & Weight: 61x40x15mm, 53g
BEC Vx
- Output voltage 5.25V / 6V / 8V options.
- Output voltage tolerance 1.5%
- Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
- Supports typical continuous output current of up to 15A, Peak current of up to 25A.
- Output ripple 32mV (VIN=50V, Output 5.25V @ 15A), 43mV (VIN=50V, Output @ 5A)
- Standby current: 10~20mA
- Reverse Input voltage protection: No
- Thermal Shutdown
- Output Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
- Tip: Input voltage >= 15V is required for continuous output current of 15A
BEC 5V
- Output voltage 5.2V, tolerance 1.5%
- Supports continuous output current of up to 4A, Peak current of 6A
- Output ripple 20mV (VIN=24V, Output @ 5A), 50mV (VIN=50V, Output @ 5A)
- Reverse Input voltage protection: No
- Thermal Shutdown
- Output Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
BEC 12V
- Output voltage 12V, tolerance 1.5%
- Supports continuous output current of up to 4A, Peak current of 6A
- Output ripple 18mV (VIN=24V, Output @ 5A), 32mV (VIN=50V, Output @ 5A)
- Reverse Input voltage protection: No
- Thermal Shutdown
- Output Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
- Tip: Input voltage >= 13V is required for stable 12V output
Packing
- 1x PM12S-3
- 1x Low ESR capacitor ZLJ 63v 390uf
- Tips: If the input voltage is noisy, capacitor is required to be soldered to the input pads
BEC Vx Testing
