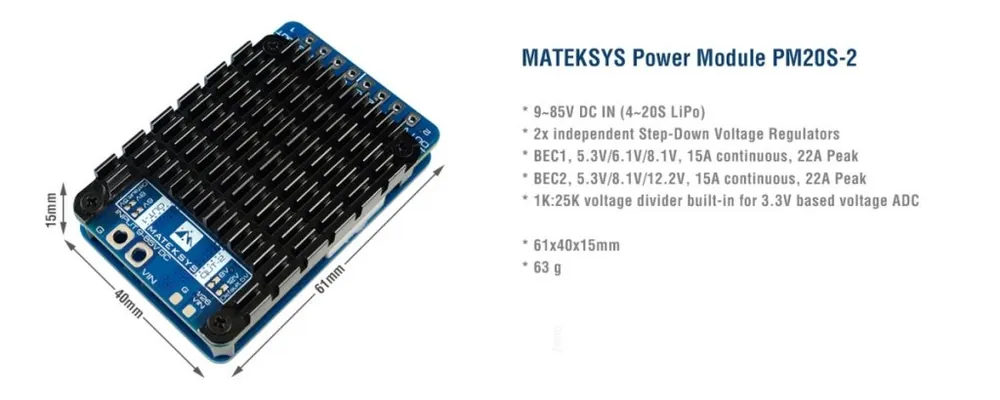

Regulator napięcia SBEC Stepdown Matek Power Module PM20S-2 Oferta

Opis

• PM20S-2 is made with 100V DC components.
• Support 9V to 85V DC operating Input voltage with 85V TVS protection
• 2x independent Step-Down Voltage Regulators
• Regulator 1 ,  5.3V / 6.1V / 8.1V output options.  supports typical continuous output current of up to 15A, Peak current of up to 22A.
• Regulator 2 ,  5.3V / 8.1V / 12.2V output options.  supports typical continuous output current of up to 15A, Peak current of up to 22A.
• 1K:25K voltage divider built-in for 3.3V based voltage ADC
• Size & Weight: 61x40x15mm, 63g
• 3D step file PM20S-2.zip

Regulator 1

• Output voltage 5.3V / 6.1V / 8.1V options.
• Output voltage tolerance 1.5%
• Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
• Supports typical continuous output current of up to 15A,  Peak current of up to 22A.
• Output ripple  25mV (VIN=42V,  Output 5.3V @ 5A),  35mV (VIN=58V,  Output 5.3V @ 15A)
• Standby current: 10~30mA
• Reverse Input voltage protection: No
• Thermal Shutdown 150C
• Output Short-circuit tolerant (1 seconds)
• Overcurrent protection & self-recovery
• Tip: Input voltage >= 15V is required for continuous output current of 15A

Regulator 2

• Output voltage 5.3V / 8.1V/12.2V options.
• Output voltage tolerance 1.5%
• Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
• Supports typical continuous output current of up to 15A,  Peak current of up to 22A.
• Output ripple  58mV (VIN=58V,  Output 12V @ 5A)
• Standby current: 10~30mA
• Reverse Input voltage protection: No
• Thermal Shutdown 150C
• Output Short-circuit tolerant (1 seconds)
• Overcurrent protection & self-recovery
• Tip: Input voltage >= 15V is required for continuous output current of 15A



 4~8S Input9-10S Input11-14S Input15~20S InputOutputSingle BEC continuous output.  After continuous running for 5 minutes, the board temperature stabilized at 80~90℃.

No Thermal shutdown @ Room Temperature 20℃.

5.3v15A15A15A13A6.1V15A15A15A12A8.1V15A15A13A12A12.2V15A13A10A10A Peak output current 22A.

Peak current usually makes sense for servos. Servos do not always run at continuous high loads.





Input(V)Input(A)Output(V)Output(A)efficiencyPower loss(W)Vpp(mV)25.001.125.31594.82%1.372025.002.255.311094.40%2.972325.003.435.311592.89%5.672742.000.705.32590.48%2.532542.001.365.311092.96%3.743042.002.055.311592.51%5.973358.000.515.32589.93%2.683058.001.015.311090.65%4.973258.001.515.311590.95%7.213575.000.415.32586.50%3.59 75.000.795.311089.62%5.51 75.001.195.311589.24%8.57 85.000.365.32586.93%3.48 85.000.705.311089.24%5.71 85.001.055.311589.24%8.57 Input(V)Input(A)Output(V)Output(A)efficiencyPower loss(W)Vpp(mV)25.001.296.12594.88%1.572525.002.586.121094.88%3.133525.003.926.121593.67%5.81 42.000.806.12591.07%2.732842.001.556.121094.01%3.673942.002.346.121593.41%6.05 58.000.586.12590.96%2.772958.001.156.121091.75%5.054058.001.736.121591.49%7.81 75.000.466.12588.70%3.46 75.000.906.121090.67%5.71 75.001.356.121590.67%8.57 85.000.426.12585.71%4.37 85.000.806.121090.00%6.12 85.001.206.121590.00%9.18 Input(V)Input(A)Output(V)Output(A)efficiencyPower loss(W)Vpp(mV)25.001.718.16595.44%1.862625.003.428.161095.44%3.723825.005.188.161594.52%6.71 42.001.038.16594.31%2.324342.002.038.161095.71%3.505042.003.078.161594.93%6.21 58.000.768.16592.56%3.045058.001.498.161094.42%4.555658.002.258.161593.79%7.60 75.000.608.16590.67%3.81 75.001.178.161092.99%5.72 75.001.758.161593.26%8.25 85.000.538.16590.57%3.85 85.001.038.161093.20%5.55 85.001.558.161592.90%8.69 Input(V)Input(A)Output(V)Output(A)efficiencyPower loss(W)Vpp(mV)25.002.5412.24596.38%2.224025.005.0812.241096.38%4.434525.007.6512.241596.00%7.34 42.001.5312.24595.24%2.915042.003.0312.241096.18%4.675642.004.5712.241595.65%7.98 58.001.1412.24592.56%4.555858.002.2312.241094.63%6.576258.003.3412.241594.78%9.59 75.000.8812.20592.42%4.62 75.001.7212.201094.57%6.62 75.002.5812.201594.57%9.93 85.000.7812.20592.01%4.88 85.001.5312.201093.81%7.55 85.002.2912.201594.01%10.95
